Other Stone Abrasive Tools

Product Overview


Quanzhou Cheefung manufactures high-durability stone abrasive tools engineered for continuous-duty stone processing plants and fabrication shops. Built to handle abrasive natural and engineered materials, our abrasive lineup, ranging from resin-bond and magnesite-bond rubbing bricks to profiled diamond wheels, delivers consistent stock removal rates, stable gloss generation, and predictable wear patterns across high-volume production lines. Field performance data confirms an average 22 percent increase in working lifespan and a 15 percent reduction in consumable cost per square meter compared to conventional industry-standard abrasives.




First 12 Last

Product Range

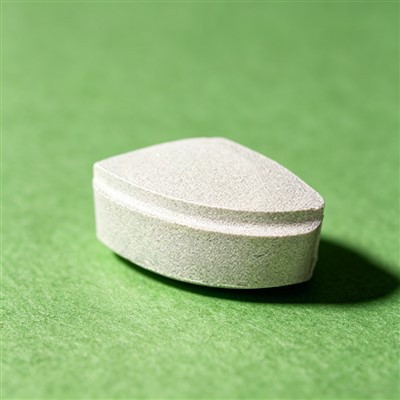

Magnesite and Resin Rubbing Bricks

For floor slab calibration, rough grinding, and pre-polishing on automatic line polishers.




Frankfurt and Lexington Abrasives

Formulated for granite and marble slab surface grinding (FEPA grit standards from grit 36 to grit 3000).




Profiling and Milling Wheels

Vacuum-brazed and sintered diamond wheels for precise edge shaping on CNC and manual routers.




Silicon Carbide and Diamond Fickerts

Optimized for high-speed automatic polishing lines with minimal thermal cracking.





Technical Specifications



Product Series

Material Compatibility

Bond Type / Matrix

Available Grit / Sizes

Working Parameters

CF-MB Magnesite Bricks

Granite, Sandstone

Magnesite-bonded abrasives

Grit 36 to 320 (Frankfurt shape)

Max Speed: 2800 RPM; Wet application only

CF-RB Resin Buffs

Marble, Travertine, Limestone

Phenolic resin matrix

Grit 120 to 3000

Coolant flow rate: >= 15 L/min

CF-DW Diamond Profiling

Quartz, Engineered Stone, Granite

Vacuum-brazed / Sintered diamond

Diameters: 100mm to 250mm

Spindle speed: 4000 to 6000 RPM

CF-SC Silicon Carbide

Soft marble, Terrazzo

Vitrified / Resin bond

Grit 36 to 800

Balanced for low vibration



Performance Advantages and Efficiency Metrics
Mirror Finish Diamond Pads

Controlled Matrix Wear

Matrix erosion rate matches diamond exposure speed, preventing premature diamond pull-out and glazing while lowering tool change frequency by nearly 20 percent.

Marble Diamond Flexible Polishing Pad

High Thermal Stability

Resists resin degradation under continuous frictional heat, reducing workpiece burning on dark granites and minimizing slab rejection rates to under 0.5 percent.

Diamond Polishing Pad For Quartz Countertop

Consistent Gloss Index

Achieves uniform surface reflection (85 degrees to 95 degrees Gardner gloss units) without micro-scratches on high-demand quartz surfaces.

Curved Stone Edge Flexible Polishing Pad

Low Vibration Profile

Dynamically balanced bodies minimize spindle bearing wear on automatic bridge saws and line polishers, cutting machinery maintenance downtime.



Applications





Slab Calibration and Surface Finishing

Removing saw marks and leveling raw granite and quartz slabs on multi-head polishing lines.



Edge Profiling and Beveling

Shaping bullnose, ogee, and straight edges on kitchen countertops and architectural panels.



Tile Floor Restoration

Heavy-duty grinding and honing for commercial and residential stone flooring projects.





Manufacturing Process and Quality Control



Raw Material Grading: Incoming diamond grit and abrasive powders undergo sieve analysis to verify strict FEPA and ANSI particle size distribution.



Precision Pressing: Automated hydraulic presses apply uniform tonnage (160T to 300T) to ensure consistent density across every abrasive block.



Controlled Thermal Curing: Computer-regulated tunnel kilns and hot-press ovens cure resin and metal bonds at targeted temperature profiles to eliminate internal micro-voids.



Dimensional Inspection: Digital calipers and optical comparators check mounting tolerances, thickness variance (+/- 0.1 mm), and static balance.



Destructive and Field Testing: Batch samples undergo rotational burst testing at 1.5x rated RPM and actual cutting trials on standard granite test blocks.

Flexible Diamond Pad For Granite Countertop



OEM and ODM Customization



Formula Tuning

Custom resin-to-metal ratios tailored for specific regional stone hardness (e.g., Brazilian quartz vs. Chinese black granite).





Dimension Adjustments

Custom Frankfurt, L-shape, or Fickert dimensions machined to fit proprietary polishing machine heads (Bavelloni, Breton, Pedrini).





Private Labeling

Laser-engraved grit sizes, company logos, and custom color-coded resin backs for distributor branding.





Why Choose Quanzhou Cheefung


Direct factory production based in Nan'an, Fujian, the stone machinery and abrasive capital of China.

ISO 9001 certified quality management systems governing raw material traceability and batch testing.

Exporting to 40+ countries with stable compliance to international industrial safety standards (EN 13236).

Direct technical engineering support to analyze workpiece samples and recommend optimal grit sequences.





Frequently Asked Questions



Q: How do I select between resin-bond and magnesite-bond abrasives for hard granite?

A: Use magnesite-bond bricks for the initial rough grinding and calibration stages (grit 36 to 120) where high stock removal and mechanical strength are required. Transition to resin-bond abrasives from grit 220 upward to achieve smooth honing and high-gloss polishing without thermal shock.

Q: What is the recommended coolant flow rate during high-speed edge profiling?

A: Maintain a continuous coolant flow of at least 20 L/min directed precisely at the cutting interface. Insufficient water supply causes rapid thermal expansion, diamond burning, and premature segment glazing.

Q: Can your Fickert and Frankfurt abrasives fit older Italian line polishing machines?

A: Yes. All abrasive blocks are manufactured to standard international dimensions (Frankfurt length 139 mm / width 70 mm, Fickert length 140 mm / width 50/60/70 mm) with precise dovetail locking slots compatible with Breton, Pedrini, and Gaspari machines.

Q: What causes edge chipping when cutting engineered quartz with diamond profile wheels?

A: Edge chipping typically results from excessive feed rates, worn-out spindle bearings, or incorrect grit bonding. Reduce the feed rate by 15 percent to 20 percent when entering and exiting the quartz slab, and verify that the water coolant pressure is stable.



modular-1
Request a Quote

Provide your stone type, machine model, and current consumption volume to receive a technical proposal and quotation within 24 hours.
Email: info@cheefung-abrasives.com
WhatsApp / WeChat: +86 138 XXXXXXXX
Factory Address: Shuitou Town, Nan'an, Quanzhou, Fujian, China
