Product Introduction
Resin bond diamond grinding discs are made of a plastic disc with resin segments, designed for smooth polishing of granite, marble, and various other stone slab surfaces on automatic grinding machines or single-head polishing machines(hand held grinder).
When used together with metal bond grinding discs for initial grinding, the overall polishing effect can be achieved more easily.
Different formulas of resin segments are available, including sharp type and durable type.
In practical use, integral resin grinding discs are generally used for finer particles, and segmented type resin grinding discs are used for coarser particles

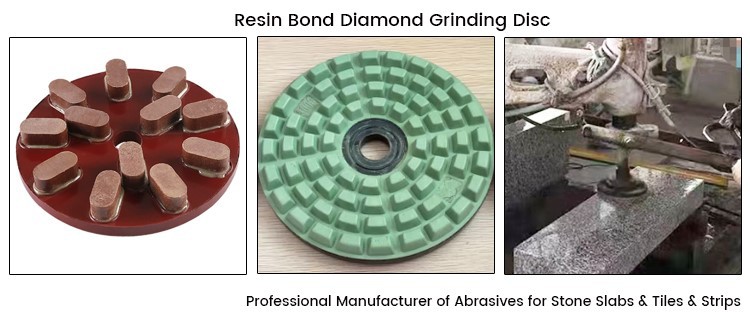

The first one on the left of the picture is a segmented type resin bond diamond grinding disc and 500#, 800#, 1500# are available;
The middle of the picture is an integrated type resin bond diamond grinding disc and 1500#, 2000#,3000# are available.
(These Resin Bond Diamond Grinding Discs are used on Hand-held Grinder or Automatic Grinder.)
Specification
|
Bond |
Resin Bond |
|
Abrasive |
Diamond Powder |
|
Grinding Type |
Medium Grinding , Fine polishing |
|
Diameter |
8"/200mm |
|
Segment Height |
15mm/20mm |
|
Typical application cases |
Indian red stone, Abangshi, Shanxi black stone and other stones |
|
Shape |
Grinding Disc |
|
Diamond Grit |
500#, 800#, 1500#; 1500#, 2000#,3000#. |
* Accept OEM/ODM, accept customization;
* Packaging can be customized;
* Contact customer service for details;
* Other specifications can also be customized;
Resin Bond Diamond Grinding Disc Tips
1.500 # resin grinding disc, suitable for grinding large areas of slabs, with a sharp blade that can quickly polish.;
01
2.The 800 # resin grinding disc is the second process after grinding the 50 # metal bond diamond grinding disc;
02
3.1500 # is the third process, which was previously processed using a diamond grinding disc. The grinding disc is sharp and moderately sharp, with good wear resistance, making it a good helper for polishing boards;
03
4.Our company produces Resin bond grinding discs with sharp and wear-resistant particles, suitable for various types of granite, black stone, artificial stone, marble and other stones.
04
5.The product is safe and reliable, and is a good helper for stone polishing
05
Classification and selection of resin grinding discs
Although automatic grinding & polishing line machines have higher efficiency, hand-held grinding machines still have strong advantages for thick plates, tombstones, strip boards, small batch processing, limited space, and other situations.
In order to use resin grinding discs more efficiently, we have developed different resin grinding discs according to different usage situations

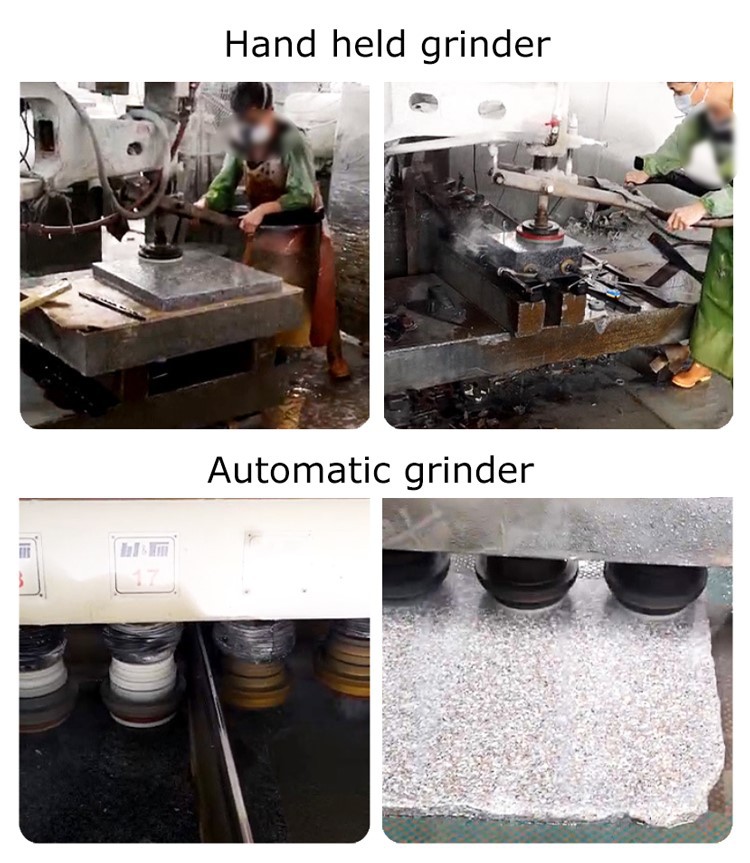

From the use of machinery, our company supplies automatic grinding machine resin grinding discs and hand-held grinding machine grinding discs.
We supply hard stone resin grinding discs and soft stone resin grinding discs for the use of stone materials

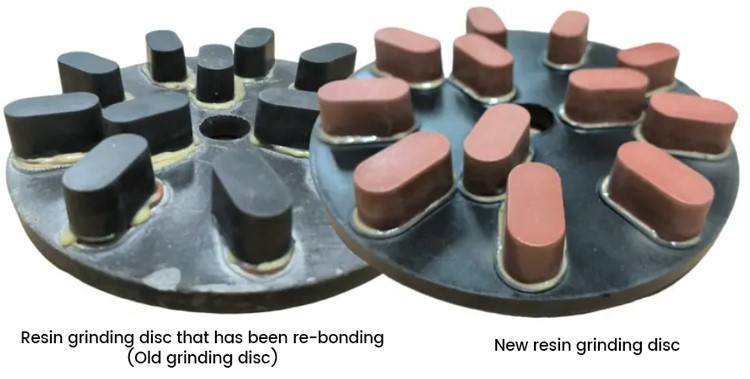

For segmented resin grinding discs, our company can supply new resin grinding discs and reused resin grinding discs
