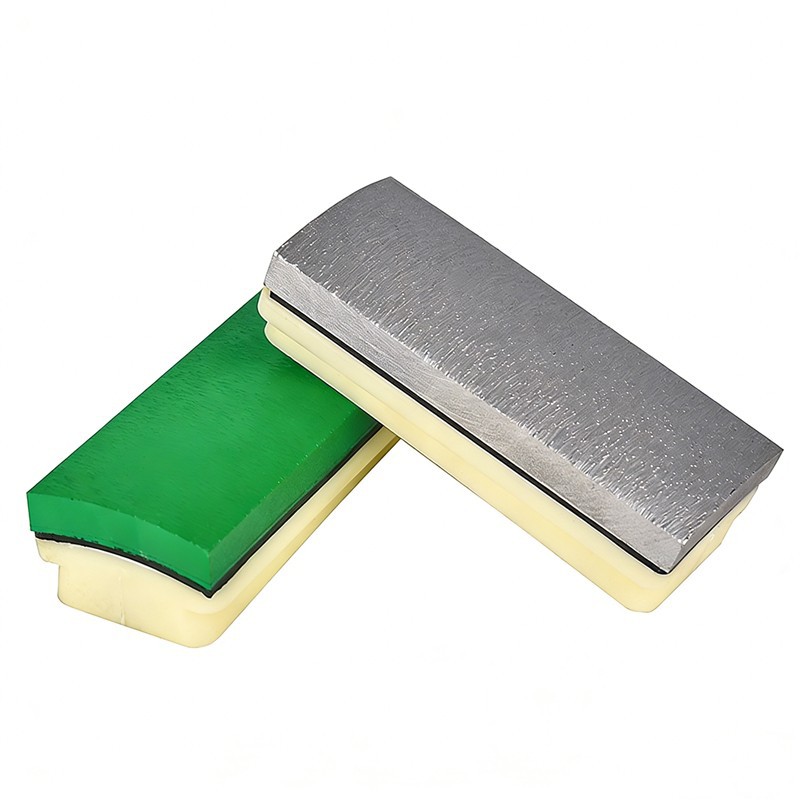

Metal Fickert Diamond Grinding Tools

Metal Fickert Diamond Grinding Block is a key technical tool for achieving efficient and high-quality automated grinding and polishing of granite slabs/tiles. These Fickert Abrasives are widely used for Granite Slabs & Tiles Factories.

It is a regular shaped block formed by consolidating diamond micro powder (as abrasive) and metal powder (as binder, such as cobalt, copper, tin, iron and other alloys) together through high-temperature and high-pressure sintering process. Under the enormous pressure and high-speed rotation of the grinding and polishing machine, the metal bonding agent continuously releases new and sharp diamond edges through its own wear, performing continuous "micro cutting" on the hard granite surface to achieve the effects of grinding, leveling, and final polishing.

Our Metal Fickert Diamond Grinding Block is a specialized tools used in the processing of granite and extravagant stone slabs/tiles. It is an ideal replacement of traditional SiC Abrasives, with which machine stone and tools installation time will be reduced thus the working efficiency increase by a great degree.

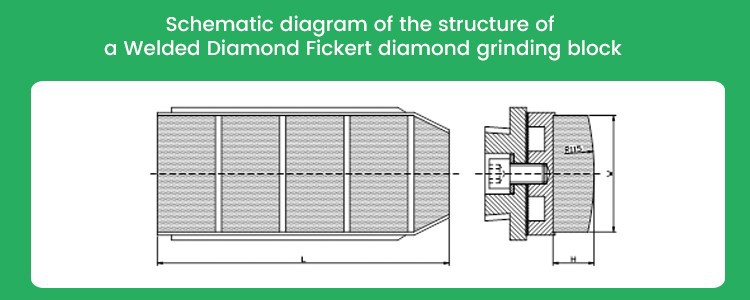

(Schematic diagram of the structure of a Welded Diamond Fickert diamond grinding block)

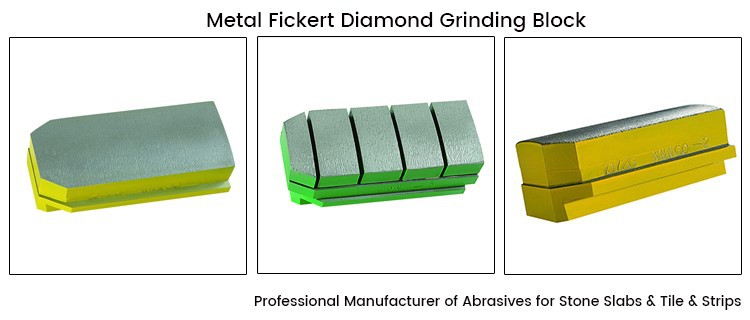

We supply welded Metal Fickert Diamond Grinding Block, sintered metal fickert diamond grinding block, and whole-sintered metal fickert diamond grinding block.

* For more specifications and information, as well as customization, please leave your contact information or contact our customer service personnel on our website.

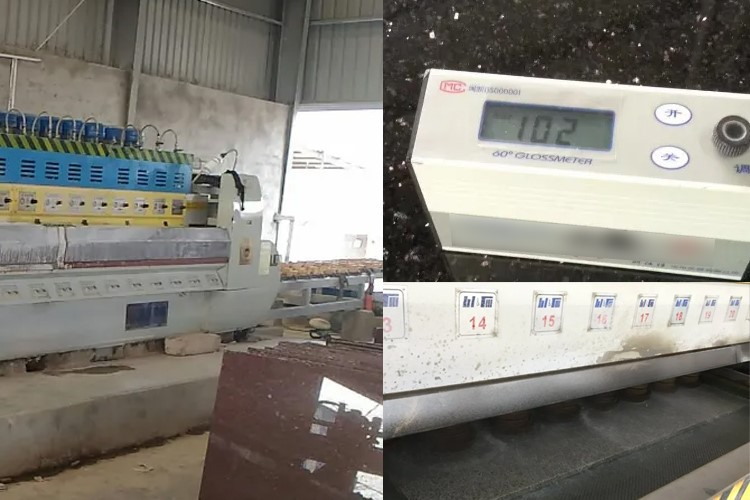

On a typical continuous grinding and polishing line, you'll usually have anywhere from ten to twenty grinding heads, and each head holds several grinding blocks. These blocks are arranged in a strict sequence, going from coarse to fine-and that's what makes up the whole grinding and polishing process. This sequence is marked by something called a "number."

Basically, the lower the number, the coarser the diamond grain. That means stronger grinding power and more material being removed.

The higher the number, the finer the grain. So the grinding force is gentler, and the surface comes out much smoother.

The numbering standard for abrasives is not globally unified. Different manufacturers-such as Italian, Chinese, and Turkish brands-may use different numbering systems. However, the progressive logic of moving from coarse to fine grit remains consistent across all systems.
The actual grinding configuration should be adjusted based on the hardness of the stone, equipment conditions, and production efficiency requirements.
The above information is for reference only. In practice, the grinding process can be fine-tuned according to the specific performance of both the stone and the abrasives. If you need more detailed usage parameters or data, please contact our customer service for comprehensive solutions and supporting information.(Our company's production of fickert grinding blocks is very popular at Shuitou Stone Factory)

Granite has extremely high hardness (Mohs hardness 6-7), requiring a high hardness and high wear resistant binder to hold the same hard diamond abrasive. The strength and wear resistance of metal bonding agents far exceed those of resin bonding agents, making them very suitable for rough grinding, fine grinding, and initial polishing processes of granite.

If you want to find high-quality and cost-effective Metal Fickert Diamond Grinding Block, look for Cheefung, a professional Chinese manufacturer of stone abrasives and grinding tools.

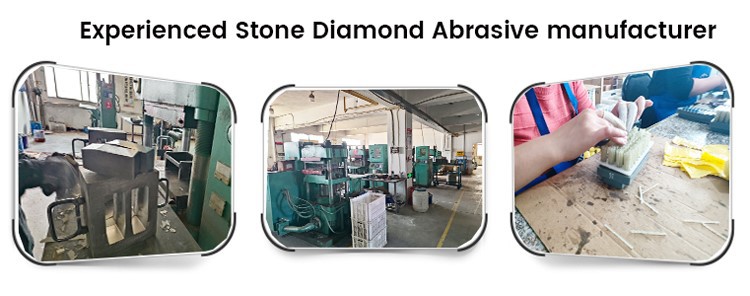

Cheefung Company is a specialized manufacturer of grinding and polishing tools for stone slabs & tiles & strips, established in 2006. Located in Quanzhou City, Fujian Province-the company has long focused on the R&D, production, and sales of stone abrasive tools. After more than twenty years of continuous effort, our products have not only gained widespread recognition within the Shuitou stone market but are also exported to overseas markets across the Middle East, South America, Western Europe, and Southeast Asia, where they are increasingly favored by a growing number of clients.
