Product Introduction

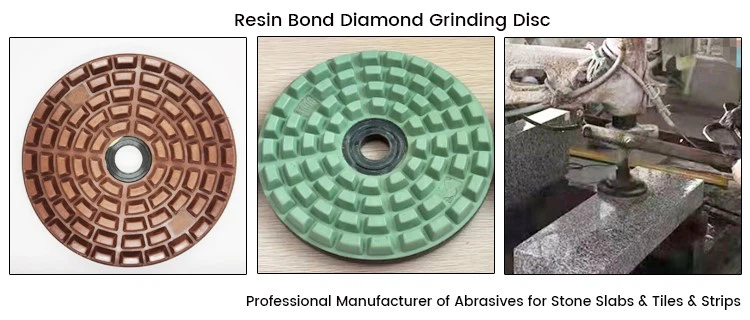

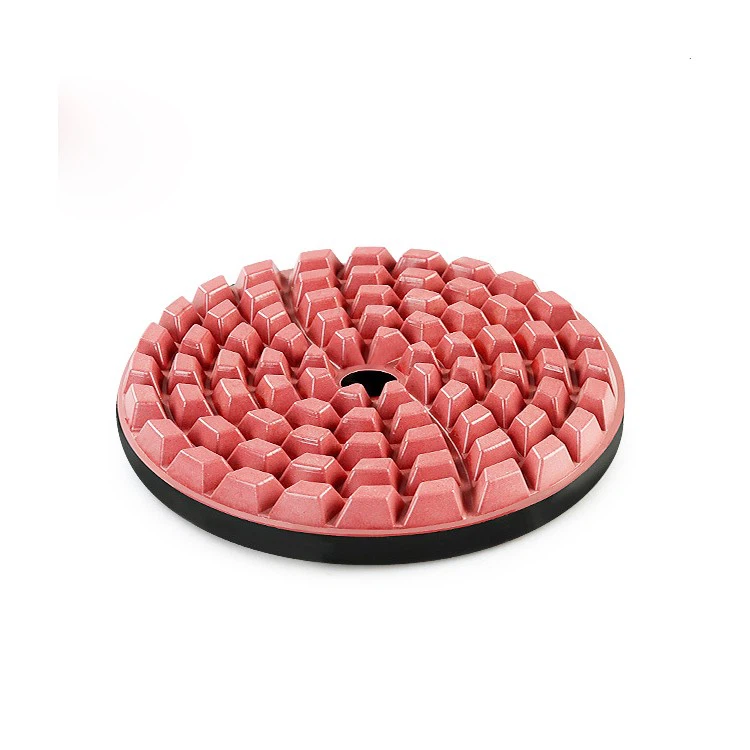

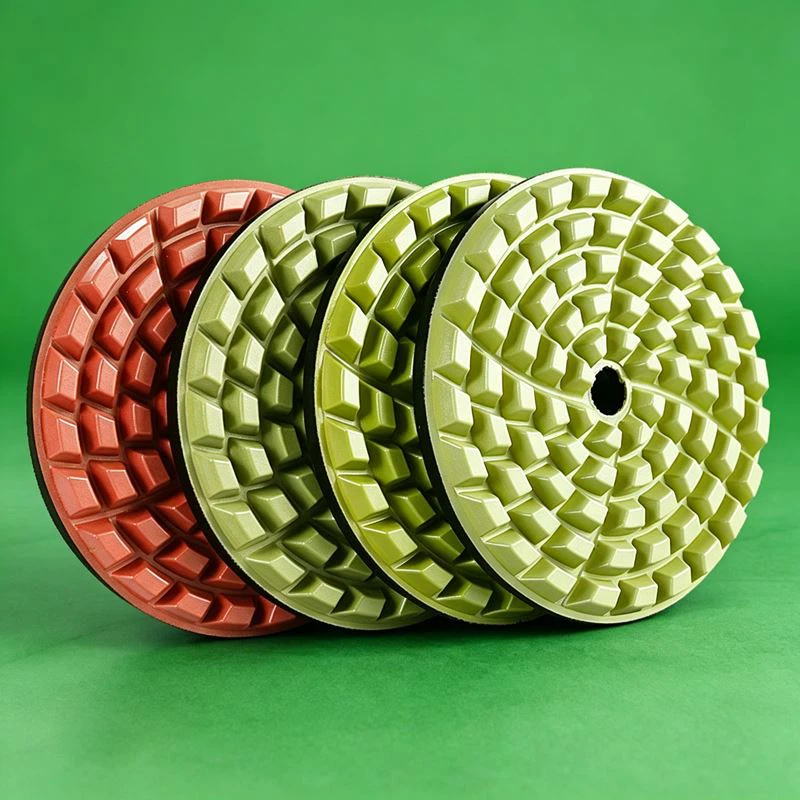

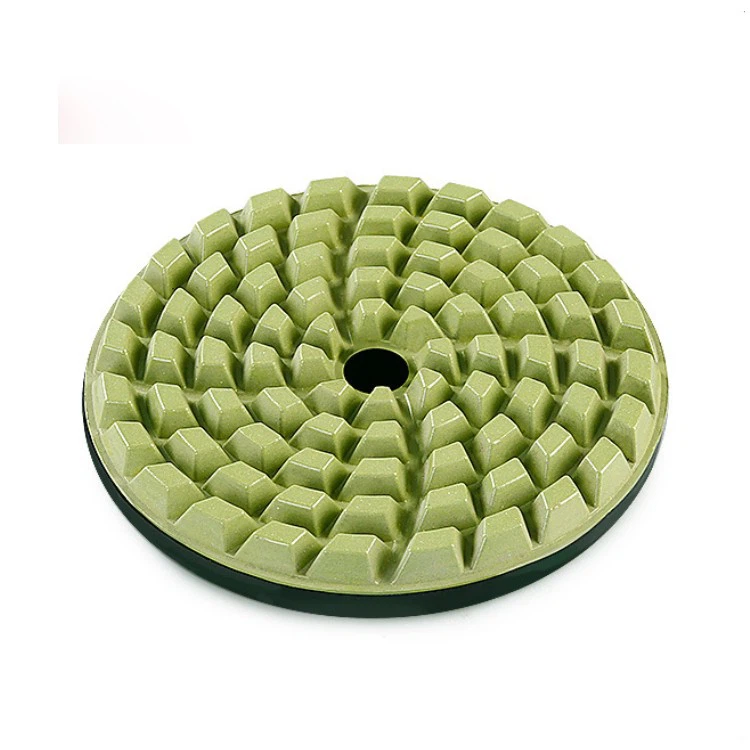

Integral Resin bond diamond grinding discs are made of a plastic disc with resin segments, designed for smooth polishing of granite, marble, and various other stone slab surfaces on automatic grinding machines or single-head polishing machines(hand held grinder).
Compared to segmented resin bond diamond grinding discs, its abrasive layer is usually formed by integral pressing. Usually used for fine grinding and polishing. The manufacturing process of integral molding makes the integral resin grinding disc less weldable than the segmented resin grinding disc.
Some factories press the working layer of the integral resin grinding disc into a sunflower shape, so it is also called a sunflower resin grinding disc.
When used together with metal bond grinding discs for initial grinding, the overall polishing effect can be achieved more easily.
Different formulas of resin segments are available, including sharp type and durable type.
Specification
|
Bond |
Resin Bond |
|
Abrasive |
Diamond Powder |
|
Grinding Type |
Fine polishing |
|
Diameter |
8"/200mm |
|
Segment Height |
15mm/20mm |
|
Shape |
Grinding Disc |
|
Diamond Grit |
1500#, 2000#,3000#. |
* Accept OEM/ODM, accept customization;
* Packaging can be customized;
* Contact customer service for details;
* Other specifications can also be customized;

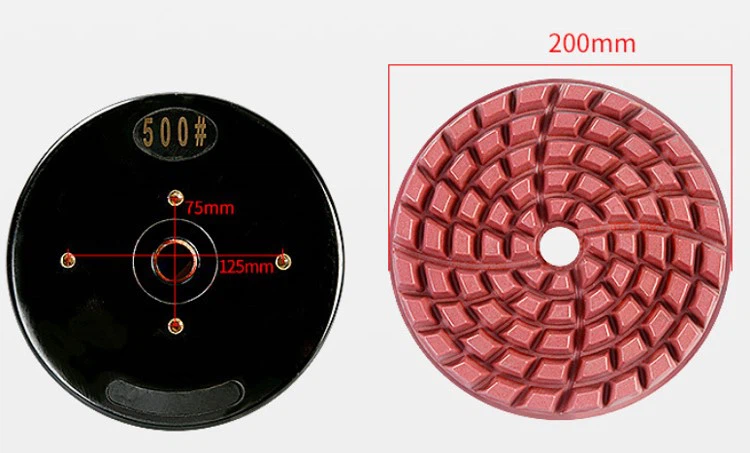

The installation dimensions are shown in the above figure. For more data, please contact the company's customer service personnel for free request
Resin Bond Diamond Grinding Disc Tips
500 # resin grinding disc, suitable for grinding large areas of slabs, with a sharp blade that can quickly polish.;
01
The 800 # resin grinding disc is the second process after grinding the 50 # metal bond diamond grinding disc;
02
1500 # is the third process, which was previously processed using a diamond grinding disc. The grinding disc is sharp and moderately sharp, with good wear resistance, making it a good helper for polishing boards;
03
Our company produces Resin bond grinding discs with sharp and wear-resistant particles, suitable for various types of granite, black stone, artificial stone, marble and other stones.
04
The product is safe and reliable, and is a good helper for stone polishing
05
About Integral Resin Diamond Grinding Disc
Our company is committed to developing stone grinding tools with higher grinding efficiency, lower cost, and more stable performance. We have obtained ISO quality system certification and established a comprehensive technical system to continuously enhance our research and development investment. Ultimately, our company's products have gained unanimous and good recognition in the Shuitou stone market. And constantly gaining the love of more and more overseas customers.
